Body COMPACT CARRIER

COMPACT CARRIER CT125 '20 /TRAIL125 '21

SPECIFICATIONS:

Light and stylish look

- A compact carrier designed for the CT125 and Trail125.
- Unlike the large design stock carrier, this compact design provides a light and stylish look.
- In addition, weight of the rear area is reduced.
- Can be used with Honda stock pillion seat (77300-GT0-M00).
【Please note】The factory tool box cannot be installed.

Part number Bike Year
D60-10-021 CT125 20-22
D60-10-021 Trail125 21-22
Spec
Color Black
Material Steel
Size 228 x 346mm
Pipe Diameter Diameter 16mm
Surface finish Black powder coating
Description
Not only does it look stylish, but it also reduces weight in the rear area.
【Stock comparison】
Stock carrier: 4.36kg
DRC Compact Carrier: 1.88kg (with grab bar installed: 2.58kg)
Weight reduction of approx. 2.5kg.
COMPACT CARRIER
A pillion pad can be installed. Long seat style creates a more stylish look.
Made of 16mm diameter, 2.5mm thick steel pipe with sufficient rigidity and strength.
COMPACT CARRIER

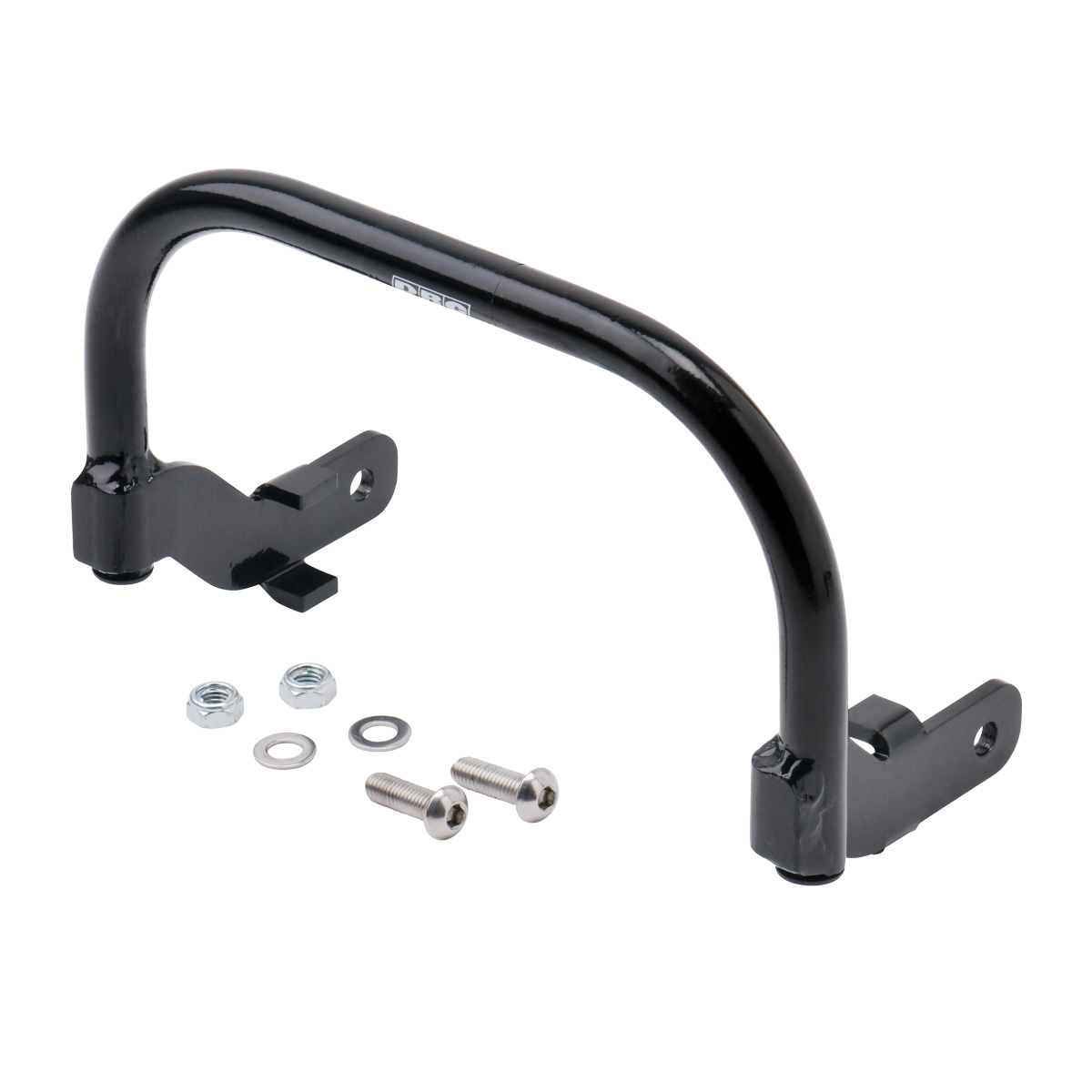

A grab bar (part number: D60-10-022) is available as an option.
Useful when tandem riding or when loading luggage.
Detachable design even with the compact carrier installed.
Grab Bar
COMPACT CARRIER
Can be used with the side bag support for CT125 (Part No. D60-01-021). COMPACT CARRIER
Dimension
COMPACT CARRIER
Option Grab Bar
COMPACT CARRIER
D60-10-022
